dB Panel 17

	Impact Rating: 56dB L nTw
	Airborne Rating 48dB DnTw +C tr
	Thickness 17mm
	Sheet Dimensions: 1.2m x 0.6m
	Area: 0.72㎡

What is the db Panel 17mm?

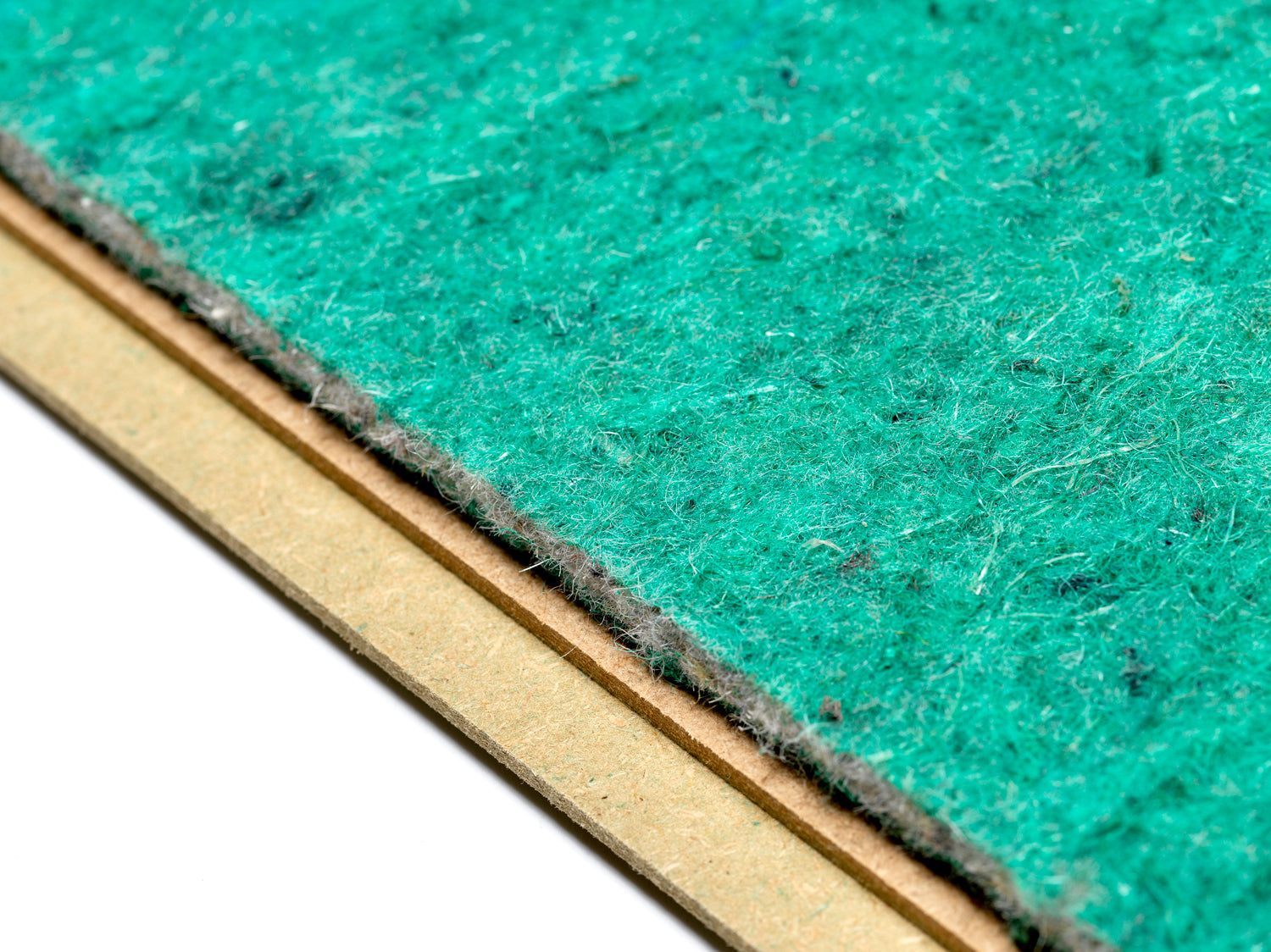

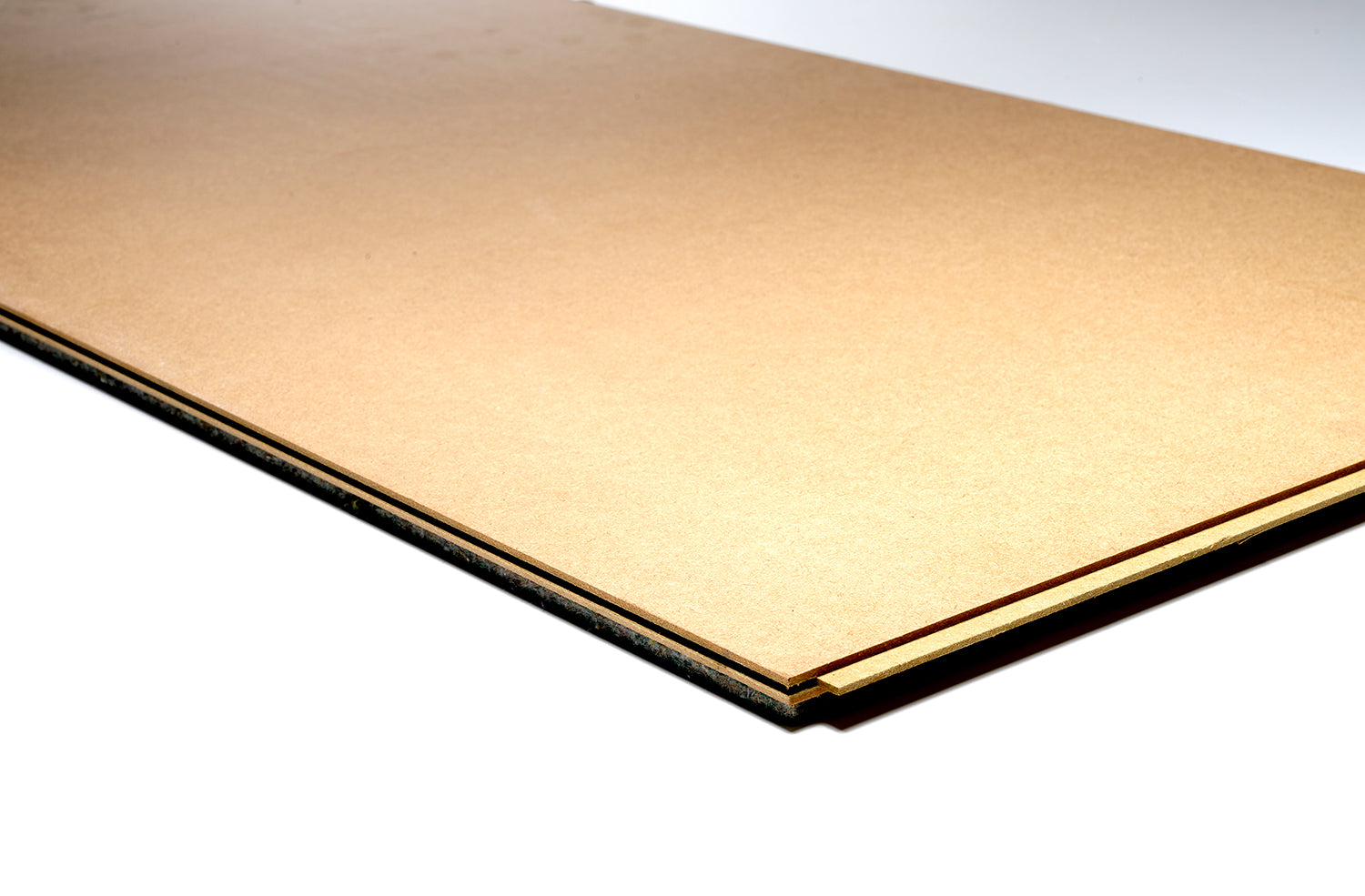

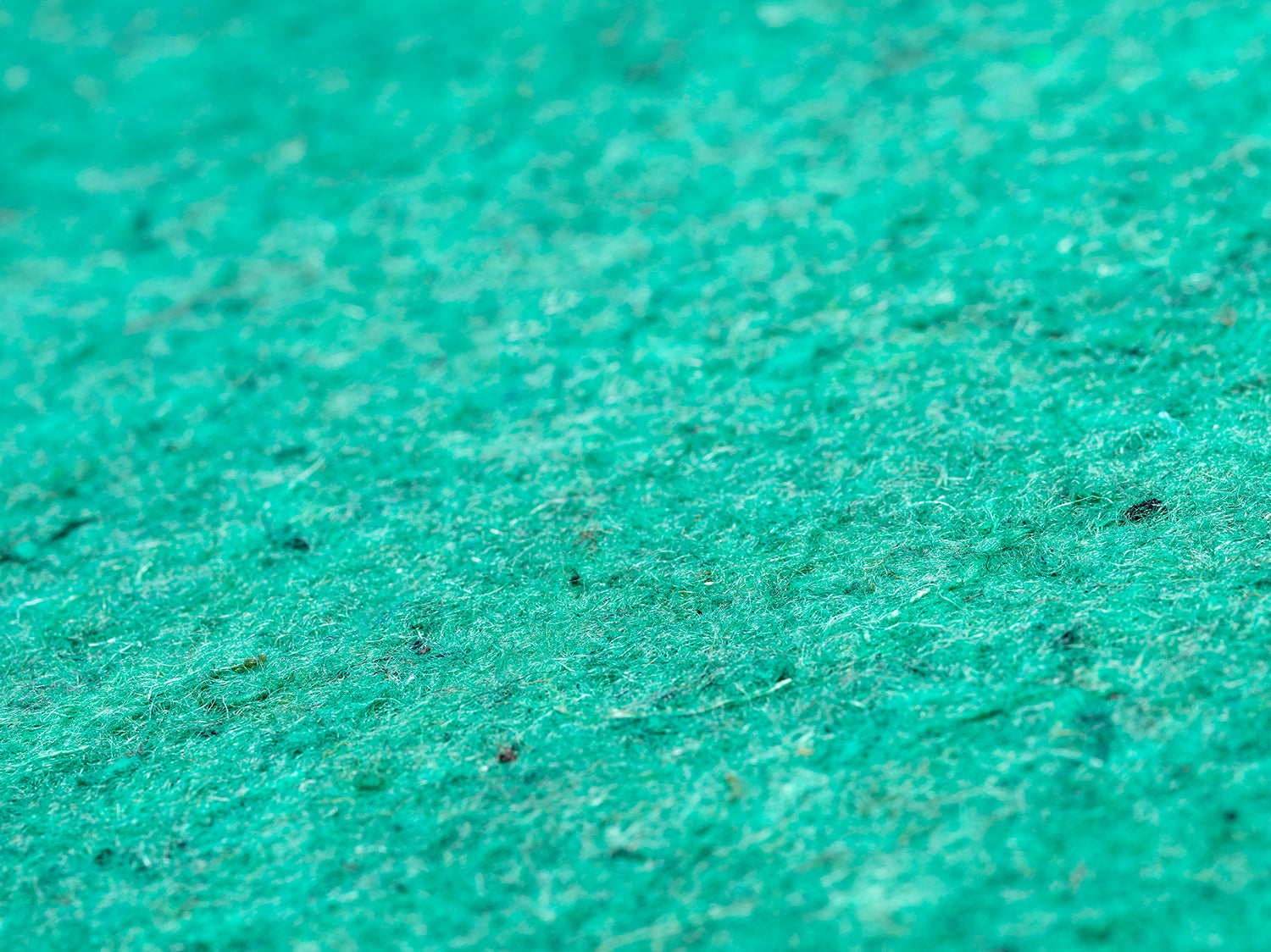

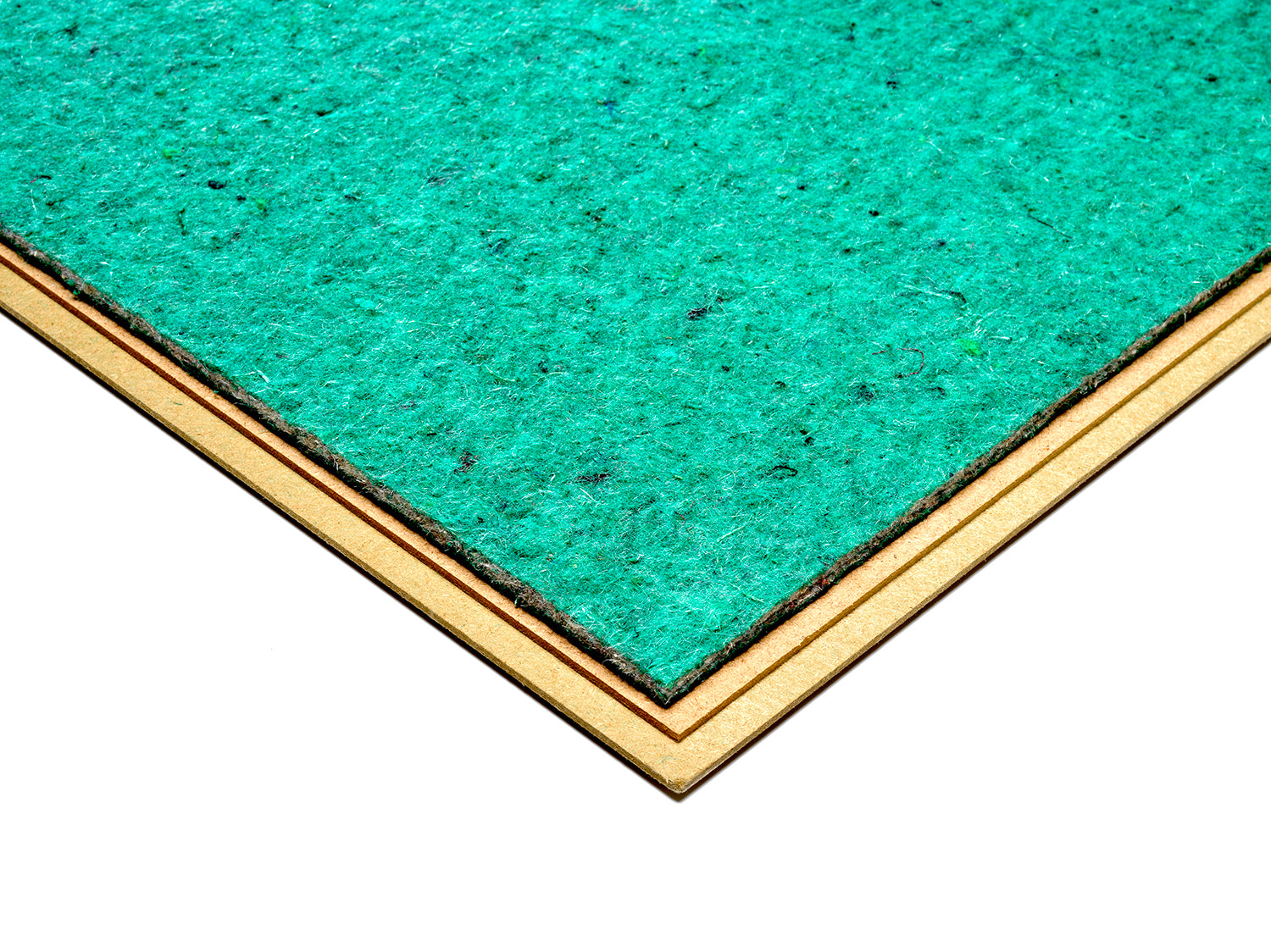

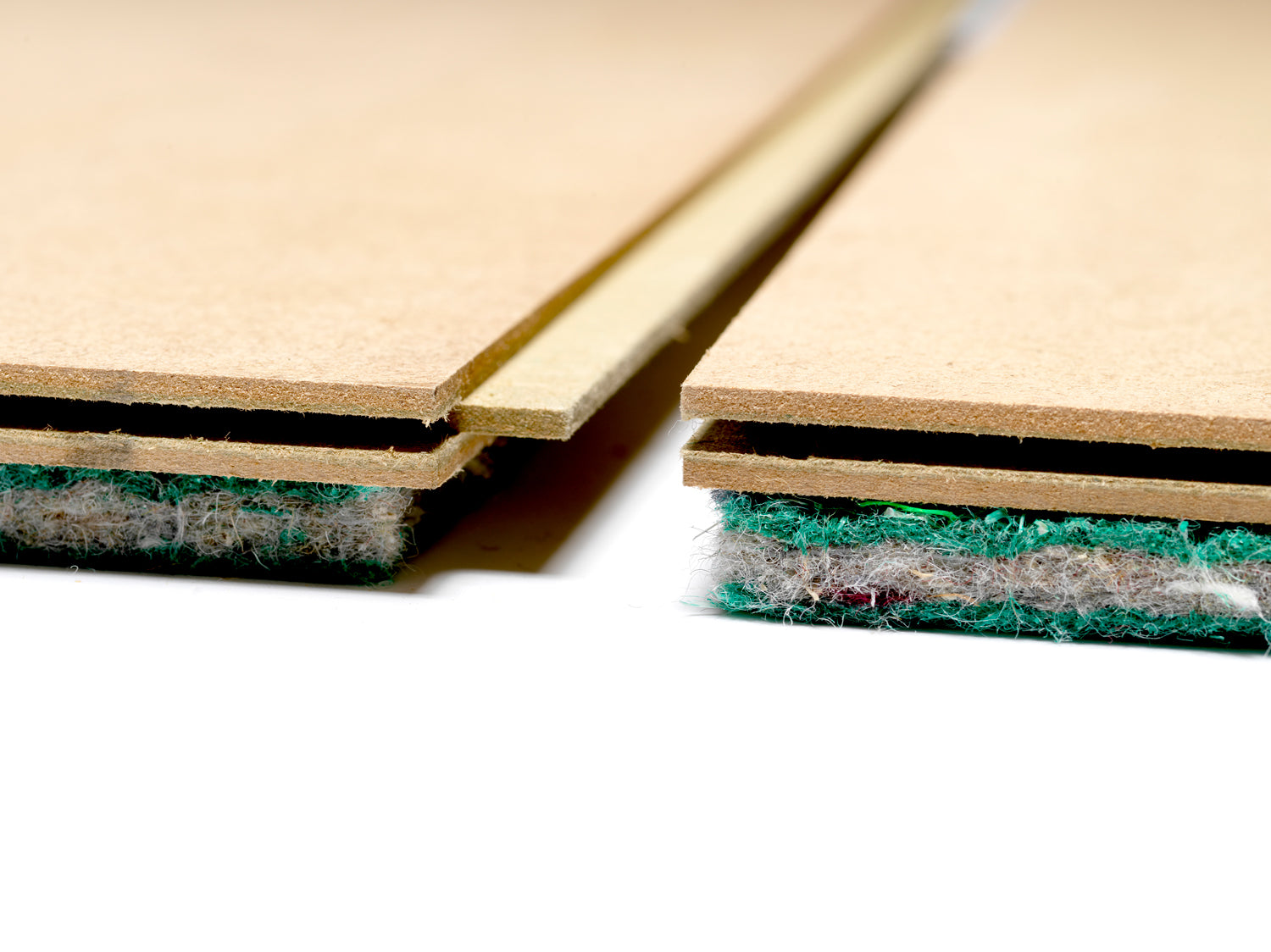

dB Panel 17 is our shallow overlay panel. The product consists of 9mm MDF and 8mm acoustic felt. The panel is a tongue and groove system that is installed as an acoustic overlay with no mechanical fixings.

If you are looking to use an overlay panel and keep the floor to ceiling height as low as possible dB Panel 17 is a great option.

Please consult the dB Panel 17 datasheet for full installation & performance information.

Weight per board: 5kg / 6.9kg/m2

Dimensions: 1200mm x 600mm x 17mm

For assistance on the correct quantity to order please contact our technical team on 01928 571 856 or email us on hello@soundinsulationstore.co.uk

Technical Data
